Compact, dynamic

Compact controller LMV-D3-MP-F

COMPACT, DYNAMIC

With service interface and bus communication facility

Compact device for use with VAV terminal units

Controller, differential pressure transducer, and actuator are fitted together in one casing
Volume flow rates Vmin and Vmax are factory set as parameters
Ideal for carrying out service from the switch cabinet or control panel
Change of parameters using adjustment devices
Suitable for constant and variable volume flows as well as for Vmin / Vmax switching
Bus communication is possible due to the following interfaces: MP bus, LonWorks, Modbus RTU, KNX

Application

Application

Electronic volume flow controllers of Type Compact are compact, all-in-one control devices for VAV terminal units
Dynamic differential pressure transducer, electronic controller, and actuator are fitted together in one casing
Suitable for different control tasks depending on how the input for the setpoint value signal is used
The output signals (voltage signals or data points) of the room temperature controller, central BMS, air quality controller or similar units control variably control the volume flow
Switches or relays allow for local overrides (depending on controller variant)
Volume flow rate actual value is available as a linear voltage signal or data point
Controller parameters are factory set

Standard filtration in comfort air conditioning systems allows for use of the controller in the supply air without additional dust protection. Since a partial volume flow is passed through the transducer in order to measure the volume flow rate, please note:

With heavy dust levels in the room, suitable extract air filters must be provided.
If the air is polluted with fluff or sticky particles or contains aggressive media, Compact controllers cannot be used

Description

Parts and characteristics

Sensor for dynamic differential pressure measurements
Mechanical stops for limiting the damper blade positions
Actuators with overload protection
Release button to allow for manual operation

Technische informatie

Function

Principle of operation – Easy and Compact controllers 00132245_0

① Differential pressure transducer
② Actuator
③ Volume flow controller
④ Setpoint value signal

Functional description

VAV terminal units control the volume flow in a closed loop, i.e. measurement – comparison – control.

The volume flow rate is determined by measuring the differential pressure (effective pressure). For this purpose the VAV terminal unit is fitted with a differential pressure sensor.

The integral differential pressure transducer transforms the effective pressure into a voltage signal, which is then analysed by the microprocessor of the controller. The volume flow rate actual value is available as a data point or voltage signal. The factory setting is such that a 10 V DC voltage signal always corresponds to the nominal volume flow rate (Vnom).

The volume flow rate setpoint value comes from a higher-level controller (e.g. room temperature controller, air quality controller, central BMS), either as a voltage signal or as a data point, or from local switch contacts. Variable volume flow control results in a value between Vmin and Vmax. It is possible to override the room temperature control, e.g. by a complete shut-off of the duct.

The controller compares the volume flow rate setpoint value to the actual value and controls the integral actuator accordingly.

Volume flow rate parameters and voltage ranges are factory stored in the controller. Changes on the customer's site can easily be carried out using an adjustment device, a notebook with service tool, or a bus interface.

Volume flow control

The volume flow controller works independent of the duct pressure
Differential pressure fluctuations do not result in permanent volume flow rate changes
To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move.

Variants, MP bus/Analogue, LonWorks, Modbus RTU

Any attachments are to be defined with the order code of the VAV terminal unit.

Compact controllers for VAV terminal units

Order code detail	Part number	Type	Type of VAV terminal unit
BC0	A00000043143	LMV-D3L-MP-F	①
BC0	A00000043141	LMV-D3-MP-F	②
BC0	A00000043140	LMV-D3-MP	④⑥
BC0	A00000043142	NMV-D3-MP	③
BC0	A00000043140	2 × LMV-D3-MP	⑤
BL0	M466ES7	LMV-D3LON	② ④
BL0	M466ES8	NMV-D3LON	③
BM0	A00000025995	LMV-D3-MOD	② ④
BM0	A00000043588	NMV-D3-MOD	③
BM0	A00000025995	2 × LMV-D3-MOD	⑤
BM0-J6	A00000044861	LMV-D3-MOD-J6	② ④
BM0-J6	A00000044862	NMV-D3-MOD-J6	③
BM0-J6	A00000044861	2 × LMV-D3-MOD-J6	⑤
XB0	M466DC1	227V-024-10	② ③ ④
XB0	M466DC1	2 × 227V-024-10	⑤
LN0	M466EG7	GLB181.1E/3	② ③ ④
LN0	M466EG7	2 × GLB181.1E/3	⑤
LK0	A00000043586	GLB181.1E/KN	② ③ ④
LK0	A00000043586	2 × GLB181.1E/KN	⑤

① LVC

② TVR

③ TVJ, TVT

④ TZ-Silenzio, TA-Silenzio, TVZ, TVA

⑤ TVM

⑥ TVR, replacement part for LMV-D3-MP-F

Compact controller LMV-D3L-MP-F

Application

Electronic volume flow controller LMV-D3L-MP-F, LMV-D3-MP, LMV-D3-MP-F or NMV-D3-MP as Compact controller
Variable air or constant air volume flow control
The flow rate is measured using the dynamic measurement principle
Voltage range for the actual and setpoint value signals 0 – 10 V DC or 2 – 10 V DC
MP bus interface: Up to eight users can be addressed on an MP bus (LAN). This allows for the integration with higher-level systems (LonWorks, EIB-Konex, Modbus RTU and BACnet); as an alternative, a DDC controller with MP bus interface can control the Compact controller.
Controller with NFC technology, i.e. settings and operating values can be read out using a smartphone app

Construction

BC0

LMV-D3L-MP-F for LVC
LMV-D3-MP-F for TVR
NMV-D3-MP for TVJ, TVT
LMV-D3-MP for TZ-Silenzio, TA-Silenzio, TVZ, TVA
2 × LMV-D3-MP for TVM

Useful additions

AT-VAV-B: Adjustment device

Signal voltage range

0: 0 – 10 V DC
2: 2 – 10 V DC with shut-off function (< 0.1 V DC)

Operating modes

E: Single and M: Master

Vmin: minimum volume flow rate
Vmax: maximum volume flow rate

S: Slave

Vmin: 0 %
Vmax: Volume flow rate ratio to the master controller

F: Constant value

Vmin: constant volume flow rate
Vmax: 100 %

Parameters are factory set. The customer defines the required operating mode and the volume flow rates in the order code at the time of ordering.

Commissioning

On-site adjusting is not required
When installing the VAV terminal units it is important to assign each room the correct unit based on the ordered volume flow rates
After successful installation and wiring the controller is ready for use on the analog interface
If the MP bus interface is used, additional commissioning steps are required

Compact controller LMV-D3L-MP-F

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	3.5 VA max.
Power rating (DC)	2 W max.
Torque	5 Nm
Running time for 90°	120 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC to 2014/30/EU, low voltage to 2014/35/EU
Weight	0.5 kg

Compact controllers LMV-D3-MP and LMV-D3-MP-F

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	4 VA max.
Power rating (DC)	2 W max.
Torque	5 Nm
Running time for 90°	110 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC according to 2014/30/EU
Weight	0.5 kg

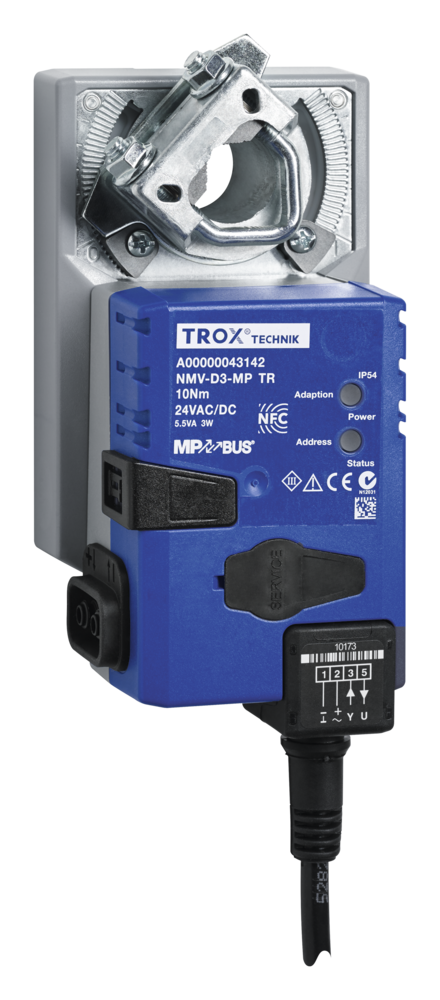

Compact controller NMV-D3-MP

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	5 VA max.
Power rating (DC)	3 W max.
Torque	10 Nm
Running time for 90°	110 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC according to 2014/30/EU
Weight	0.7 kg

Compact controller LMV-D3LON

Application

Electronic volume flow controller LMV-D3LON or NMV-D3LON as Compact controller
Variable air or constant air volume flow control
The flow rate is measured using the dynamic measurement principle
Voltage range for the actual value signal 2 – 10 V DC
Volume flow controller with LonMark certification
LonWorks interfaces for the transmission of standard network variables
Functional profiles: Node-Object #0, Damper-Actuator-Object #8110, Open-Loop-Sensor-Object #1 and Thermostat-Object #8060
The Thermostat-Object #8060 enables individual room control
A plug-in for all LNS-based network integration tools (LNS version 3.3 and higher) is available for configuration

Construction

BL0

LMV-D3LON for TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA
NMV-D3LON for TVJ, TVT

Useful additions

AT-VAV-B: Adjustment device

Signal voltage range

Actual value signal

2: 2 – 10 V DC

Commissioning

A trained LonWorks systems integrator must carry out the integration into the overall system

Compact controller LMV-D3LON

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	5.5 VA max.
Power rating (DC)	3 W max.
Torque	5 Nm
Running time for 90°	110 – 150 s
Communication	LonWorks-Transceiver FTT-10A, free topology, twisted pair
Actual value signal output	2 – 10 V DC, max. 0.5 mA
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC according to 2014/30/EU
Weight	0.5 kg

Compact controller NMV-D3LON

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	6 VA max.
Power rating (DC)	3.5 W max.
Torque	10 Nm
Running time for 90°	110 – 150 s
Communication	LonWorks-Transceiver FTT-10A, free topology, twisted pair
Actual value signal output	2 – 10 V DC, max. 0.5 mA
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC according to 2014/30/EU
Weight	0.7 kg

Compact controller LMV-D3-MOD

Application

Electronic volume flow controller Type LMV-D3-MOD (LMV-D3-MOD-J6) or NMV-D3-MOD (NMV-D3-MOD-J6) as Compact controller
Variable air or constant air volume flow control
The flow rate is measured using the dynamic measurement principle
Modbus RTU communication interface; communication parameters can be set
Setpoint value defaults and overrides by means of data exchange with a higher-level Modbus master
Local override control with switch contacts or relays (only with supply voltage 24 V AC)
Status values such as volume flow rate actual value and damper blade position are sent to the Modbus
Connection of an active sensor or switch contact for integration into Modbus
Use adjustment device or PC tool to configure the controller and the communication parameters

Construction

BM0: ...-MOD: Compact controller with connecting cable and bare wire ends
BM0-J6: ...-MOD-J6: Compact controller with RJ12 socket for the connection to zone module X-AIR-ZMO-MOD (X-AIRCONTROL control system)

LMV-D3-MOD, LMV-D3-MOD-J6 for TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA
NMV-D3-MOD, NMV-D3-MOD-J6 for TVJ, TVT
2 × LMV-D3-MOD, LMV-D3-MOD-J6 for TVM

Useful additions

AT-VAV-B: Adjustment device
X-AIR-ZMO-MOD: Zone module for Modbus RTU, for single room control system

Communication interface

Modbus RTU (RS-485)
Data points are those in the Modbus register list

Operating modes

Vmin: minimum volume flow rate
Vmax: maximum volume flow rate
OPEN: Damper blade open
CLOSED: Damper blade closed

Parameters are factory set. The customer defines the required operating mode and the volume flow rates in the order code at the time of ordering.

Commissioning

Use adjustment device or PC tool to configure the Modbus interface (network address)
When installing the VAV terminal units it is important to assign each room the correct unit based on the ordered volume flow rates

BM0

Setpoint value setting

The room or building automation system sends via Modbus a control signal
The volume flow rate setpoint depends on the control signal and the saved parameters
The control signal is sent as a percentage and leads to a volume flow rate setpoint between Vmin and Vmax
If Vmin = 0 and Vmax = Vnom, the automation system can use the entire adjustment range of the VAV terminal unit
If Vmin = 0, a preset value of 0% results in the closure of the damper blade
Vmin > 0 and/or Vmax < Vnom results in a reduced variable volume flow range with higher resolution of the control signal
Register address 1 allows for overriding Vmin, Vmax, damper blade open, damper blade closed

Actual values

The volume flow rate actual value is available in m³/h at register address 7

Compact controller LMV-D3-MOD, LMV-D3-MOD-J6

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	4 VA max.
Power rating (DC)	2 W max.
Torque	5 Nm
Running time for 90°	150 s
Communication	Modbus RTU (RS-485), not galvanically isolated
Baud rates	9600, 19200, 38400, 76800, 115200 Bd (factory setting 38400 Bd)
Transmission formats	1-8-N-2, 1-8-N-1, 1-8-E-1, 1-8-O-1 (factory setting 1-8-N-2)
Scheduling Modbus	120 Ω, can be switched
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC to 2014/30/EU, low voltage to 2014/35/EU
Weight	0.5 kg

Compact controller NMV-D3-MOD, NMV-D3-MOD-J6

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC −10/+20 %
Power rating (AC)	5 VA max.
Power rating (DC)	3 W max.
Torque	5 Nm
Running time for 90°	150 s
Communication	Modbus RTU (RS-485), not galvanically isolated
Baud rates	9600, 19200, 38400, 76800, 115200 Bd (factory setting 38400 Bd)
Transmission formats	1-8-N-2, 1-8-N-1, 1-8-E-1, 1-8-O-1 (factory setting 1-8-N-2)
Scheduling Modbus	120 Ω, can be switched
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC to 2014/30/EU, low voltage to 2014/35/EU
Weight	0.7 kg

Modbus register list

Usage	Number	Address	Access	Unit	Meaning
Operation	1	0	R, W	%	Setpoint value
Operation	2	1	R, W		Override control
Operation	3	2	R, W		Command for service and tests
Operation	4	3	R		Type of actuator
Operation	5	4	R	%	Damper blade position [%]
Operation	6	5	R	°	Damper blade position [° angle]
Operation	7	6	R	%	Volume flow rate [%]
Operation	8	7	R	m³/h	Volume flow rate [m3/h]
Operation	9	8	R	mV, Ω	Actual value of the connected function
Service	101	100	R		Serial number, part 1
Service	102	101	R		Serial number, part 2
Service	103	102	R		Serial number, part 4
Service	104	103	R		Firmware version of the Modbus module
Service	105	104	R		Fault messages and service messages
Service	106	105	R, W	%	Minimum volume flow rate
Service	107	106	R, W	%	Maximum volume flow rate
Service	108	107	R, W		Type of sensor
Service	109	108	R, W		Setpoint (action) if communication fails

R: Read

W: Write

Registers 1 – 3 (write register, operation): volatile, hence to be updated periodically

Registers 106 – 108 (write register, service): non-volatile

Analogue (Gruner), KNX (Siemens), Analogue (Siemens)

Compact controller 227V-024-10

Application

Electronic volume flow controller 227V-024-10 as Compact controller
Variable air or constant air volume flow control
The flow rate is measured using the dynamic measurement principle
Voltage range for the actual and setpoint value signals 0 – 10 V DC or 2 – 10 V DC

Construction

XB0

227V-024-10 for TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA
2 × 227V-024-10 for TVM

Useful additions

AT-VAV-G: Adjustment device

Signal voltage range

0: 0 – 10 V DC
2: 2 – 10 V DC with shut-off function (< 0.8 V DC)

Operating modes

E: Single and M: Master

Vmin: Minimum volume flow rate
Vmax: Maximum volume flow rate

S: Slave operation

Vmin: 0 %
Vmax: Volume flow rate ratio to the master controller

F: Constant value

Vmin: constant volume flow rate
Vmax: 100 %

Parameters are factory set. The customer defines the required operating mode and the volume flow rates in the order code at the time of ordering.

Commissioning

On-site adjusting is not required
When installing the VAV terminal units it is important to assign each room the correct unit based on the ordered volume flow rates
After successful installation and wiring the controller is ready for use

Compact controller 227V-024-10

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC ±20 %
Power rating (AC)	5.5 VA max.
Power rating (DC)	3 W max.
Torque	10 Nm
Running time for 90°	100 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 42
EC conformity	EMC according to 2014/30/EU
Weight	0.570 kg

Compact controller GLB181.1E/KN

Application

Electronic volume flow controller GLB181.1E/KN as Compact controller
Variable air or constant air volume flow control
The flow rate is measured according to the dynamic measurement principle
KNX communication interface (S-mode and LTE-mode) and PL-link (peripheral equipment bus) with adjustable communication parameters
Setpoint value defaults and overrides by means of data exchange with a higher-level system (Siemens Desigo, Siemens Synco 700 or S-mode compatible systems)
Status values such as volume flow rate actual value and damper blade position are sent to the interface
Use adjustment device or commissioning tool to configure the controller

Construction

LK0

GLB181.1E/KN for TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA
2 × GLB181.1E/KN for TVM

Useful additions

AT-VAV-S: Adjustment device AST20

Communication interface

KNX in S-mode and LTE-mode
PL-link (peripheral equipment bus)

Operating modes

Variable volume flow control: Vmin – Vmax
Constant volume flow control: V

Parameters are factory set. The customer defines the required operating mode and the volume flow rates in the order code at the time of ordering.

Commissioning

Use adjustment device or commissioning tool to configure the interface
When installing the VAV terminal units it is important to assign each room the correct unit based on the ordered volume flow rates

LK0

Setpoint value setting

The room or building automation system sends via a KNX bus a control signal
The volume flow rate setpoint depends on the control signal and the saved parameters
The control signal is sent as a percentage and leads to a volume flow rate setpoint between Vmin and Vmax
If Vmin = 0 and Vmax = Vnom, the automation system can use the entire adjustment range of the VAV terminal unit
Vmin > 0 and/or Vmax < Vnom results in a reduced variable volume flow range with higher resolution of the control signal
If the control signal does not change, a constant volume flow rate is maintained

Actual values

Volume flow rate actual value and damper blade position

Compact controller GLB181.1E/KN

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Power rating (AC)	3 VA max.
Torque	10 Nm
Running time for 90°	125 – 150 s
Communication	KNX, TP1-256 (galvanically separated), Busload 5 mA
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC to 2014/30/EU
Weight	0.6 kg

KNX data points in S-mode

Name in ETS tool	E: Input	Flags					Data point type				Value range:
Name in ETS tool	A: Output	K	L	S	ü	A	ID	DPT name	Format	Unit	Value range:
Fault information	A	1	0	0	1	0	219,001	_AlarmInfo	6 bytes		[0–255]=log no., [0–2]=alarm priority, [0–14]=application area, [0–4]=error class, [0–7]=attributes, [0–7]=fault state
Fault state	A	1	0	0	1	0	1,005	_Alarm	1 bit		0=normal, 1=fault
Fault transmission	E	1	0	1	0	1	1,003	_Enable	1 bit		0=disable, 1=enable
Default	E	1	0	1	0	1	5,001	_Scaling	1 byte	%	[0–100], resolution 0.4 %
Actual position	A	1	1	0	1	0	5,001	_Scaling	1 byte	%	[0–100], resolution 0.4 %
Volume flow rate actual value	A	1	1	0	1	0	8,010	_Percent_V16	2 bytes	%	–327.68–327.67 %, resolution 0.01 %
Volume flow rate actual value	A	1	1	0	1	0	14,077	_Value_Volume_Flux	4 bytes	m³/s	Resolution 1 m³/s
Fault	A	1	1	0	1	0	1,002	_Bool	1 bit		0=no error, 1=error
Simulated default setting	A	1	1	0	1	0	1,002	_Bool	1 bit		0=no error, 1=error

K: Communication

L: Read

S: Write

Ü: Transmission

A: Update

Compact controller GLB181.1E/3

Application

Electronic volume flow controller GLB181.1E/3 as Compact controller
Variable air or constant air volume flow control
The flow rate is measured using the dynamic measurement principle
Voltage range for the actual and setpoint value signals 0 – 10 V DC
For room temperature controllers with output signal 0 – 10 V DC

Construction

LN0

GLB181.1E/3 for TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA
2 × GLB181.1E/3 for TVM

Useful additions

AT-VAV-S: Adjustment device

Signal voltage range

0: 0 – 10 V DC

Operating modes

E: Single and M: Master

Vmin: Minimum volume flow rate
Vmax: Maximum volume flow rate

S: Slave

Vmin: 0 %
Vmax: Volume flow rate ratio to the master controller

F: Constant value

Vmin: constant volume flow rate
Vmax: 100 %

Parameters are factory set. The customer defines the required operating mode and the volume flow rates in the order code at the time of ordering.

Commissioning

On-site adjusting is not required
When installing the VAV terminal units it is important to assign each room the correct unit based on the ordered volume flow rates
After successful installation and wiring the controller is ready for use

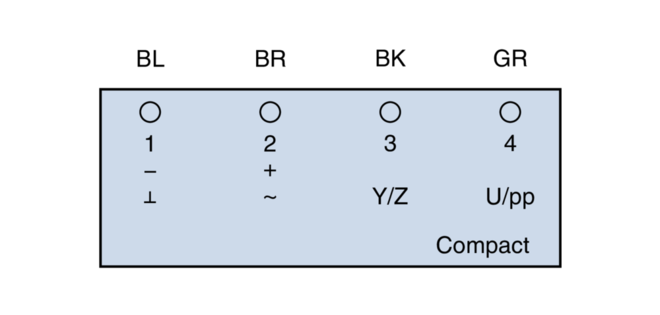

Compact controller GLB181.1E/3

Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Power rating (AC)	3 VA max.
Torque	10 Nm
Running time for 90°	125 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, max. 1 mA
IEC protection class	III (protective extra-low voltage)
Protection level	IP 54
EC conformity	EMC according to 2014/30/EU
Weight	0.6 kg

Downloads

Product informatie

Product data sheet control components BC0

BC0_PD_2022_09_15_DE_en Product data sheet 840 KB pdf
Product data sheet control components BM0

BM0_PD_2022_09_15_DE_en Product data sheet 570 KB pdf
Product data sheet control components BM0-J6

BM0-J6_PD_2022_02_21_DE_en Product data sheet 23 MB pdf
Product data sheet control components XB0

XB0_PD_2023_08_28_DE_en Product data sheet 860 KB pdf
Product data sheet control components XM0

XM0--Ab-04-24-_PD_2024_05_29_DE_en Product data sheet 640 KB pdf
Product data sheet control components XM0-J6

XM0-J6_PD_2023_10_20_DE_en Product data sheet 520 KB pdf
Product data sheet control components LK0

LK0_PD_2022_02_01_DE_en Product data sheet 420 KB pdf
Product data sheet control components LN0

LN0_PD_2024_03_01_DE_fr Product data sheet 580 KB pdf
Type Compact, dynamic

2,9 MB pdf

Bedieningshandleiding

Montage en bedieningsinstructie BCO

BC0-Compact_IM_A00000088377_V1_2021_05_GB_en Montage en bedieningsinstructie BCO 960 KB pdf
Montage en bedieningsinstructie XMO | XSO

XM0_XS0-Compact_IM_A00000088381_V2_2022_02_GB_en Montage en bedieningsinstructie XMO | XSO 1,4 MB pdf

Door op de knop te klikken stelt u ons in staat om u een uitstekende website-ervaring en een eenvoudig winkelproces te bieden. Deze cookies zijn noodzakelijk voor de werking van de website en voor de controle van onze diensten en applicaties, evenals degenen die uitsluitend worden gebruikt voor statistische doeleinden, voor gemaksinstellingen of om gepersonaliseerde inhoud weer te geven. U kunt beslissen welke categorieën u wilt toestaan en u kunt de instellingen voor datagebruik aanpassen op basis van uw individuele vereisten. Houd er rekening mee dat, afhankelijk van de instellingen die u heeft geselecteerd, mogelijk niet alle functionaliteiten van de pagina beschikbaar zijn. U kunt uw selectie op elk moment wijzigen.

TECHNISCH NOODZAKELIJK

Deze cookies zijn nodig voor het goed functioneren van onze website en kunnen niet worden uitgeschakeld. Deze cookies worden in de regel alleen ingesteld als reactie op door u ondernomen acties, zoals het instellen van uw privacyvoorkeuren of het vullen van de winkelwagen. Daarnaast zijn beveiligingsrelevante functionaliteiten of ondersteuning via een speciale webchat geïntegreerd, inclusief alle sessiecookies van TROX die worden ingesteld nadat u zich als klant hebt aangemeld. U kunt uw browser instellen om deze cookies te blokkeren of u hierover te informeren. Als gevolg hiervan werken sommige delen van de website mogelijk niet zoals bedoeld.

STATISTIEKEN EN WEBSITE-ANALYSE

Deze cookies maken het mogelijk om gegevens te verzamelen voor statistieken en analyse zodat TROX de prestaties van de bezochte websites kan meten, technische problemen kan identificeren en aanknopingspunten kan vinden voor optimalisatie. Ze kunnen worden ingesteld door ons of door derden wiens diensten we op onze sites gebruiken. Gebruikers helpen ook bij het identificeren van bijvoorbeeld welke pagina's het vaakst of slechts zelden worden gebruikt of hoe mensen tussen webpagina's navigeren. Alle informatie die door derden wordt gebruikt, wordt geaggregeerd en geanonimiseerd.

COMPACT, DYNAMIC

With service interface and bus communication facility

Application

Description

Technische informatie

Function

Variants, MP bus/Analogue, LonWorks, Modbus RTU

Analogue (Gruner), KNX (Siemens), Analogue (Siemens)

Downloads

Product informatie

Product data sheet control components BC0

Product data sheet control components BM0

Product data sheet control components BM0-J6

Product data sheet control components XB0

Product data sheet control components XM0

Product data sheet control components XM0-J6

Product data sheet control components LK0

Product data sheet control components LN0

Type Compact, dynamic

Bedieningshandleiding

Montage en bedieningsinstructie BCO

Montage en bedieningsinstructie XMO | XSO

TECHNISCH NOODZAKELIJK

STATISTIEKEN EN WEBSITE-ANALYSE

GEMAK EN PERSONALISATIE

VOOR DE BESTE TROX-ERVARING
